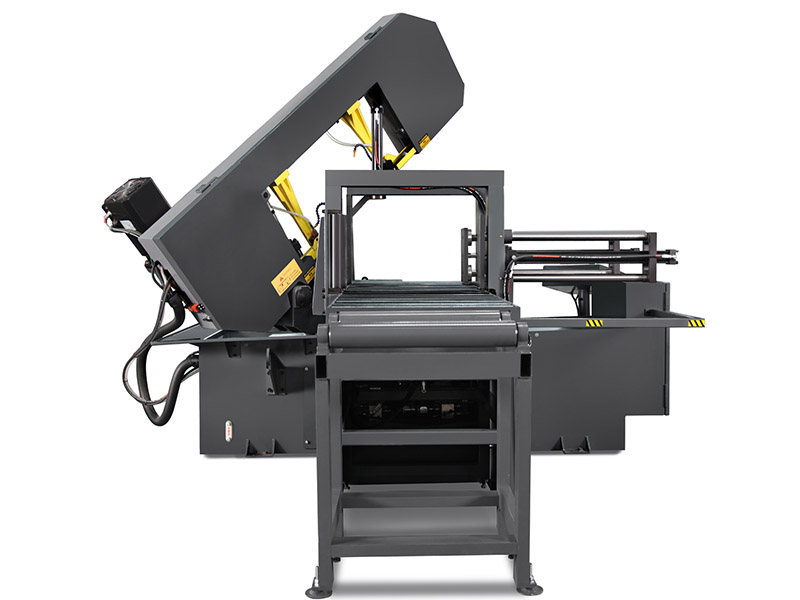

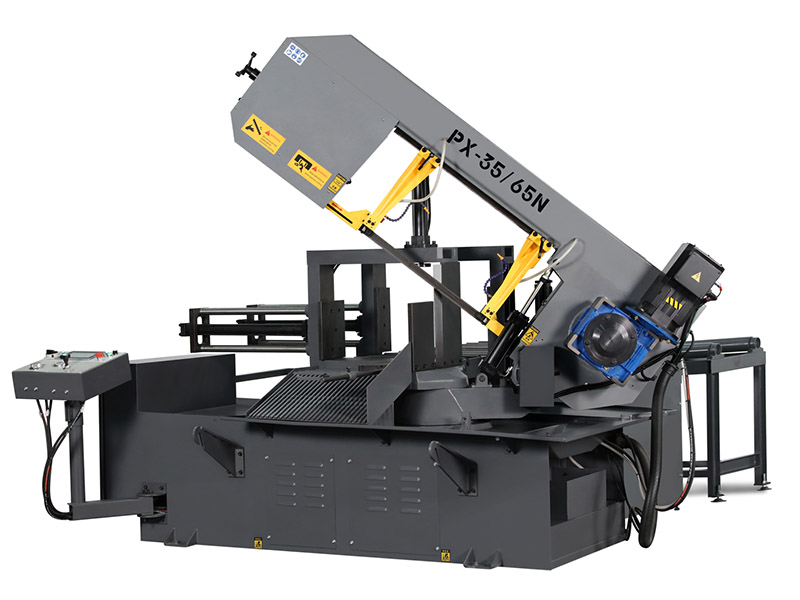

     PX-35/65N NC Control Mitre Band Saw Machine
    Cutting Capacity   (0°): ● 460 mm ■ 350×650 mm
    Cutting Capacity (45°): ● 460 mm ■ 350×460 mm
    Cutting Capacity (60°): ● 300 mm ■ 350×300 mm
    Saw Blade Size: 5220x41×1.3mm

    Features:

    1. Max. cutting 460mm(18″) at 90°

    2. Auto feeding and clamping

    3. Hydraulic clamping vice

    4. Saw frame swivel automatically

    5. Industrial duty gearbox driven by a 5.5 kW servo motor

    6. Variable cutting speed

    7. Max. feeding length up to 650 mm each time

    8. Linear scale indicator to record the feeding position

    9. Swivel control panel mounted on base for quick operation

    Specifications:

    Model PX-35/65N
    Cutting Capacity   0° ● 460mm ■ 650x350mm
    45° ● 460mm ■ 460x350mm
    60° ● 300mm ■ 300x350mm
    Blade Speed 200-100 m/min
    Blade Size (L x W x T) 5220x41x1.3 mm
    Blade Motor 5.5 kw, Servo Motor
    Hydraulic Pump 1.5 kw
    Coolant Pump 0.04 kw

    Drive

    		 Gear
    Vise Clamping Hydraulic
    Material Feeding Automatic

    Feeding Stroke

    		 550mm
    Blade Tension Manual
    Angle Swivel Automatic with HMI Display
    Machine Dimension 3030x2280x2220 mm
    Machine Weight 2430 kg

    * We reserve the rights to modify above specification without notice.

    1. Miter cutting from 0° to 60° .

    2. Blade cleaning brush.

    3. One roller table.

    4. One piece of M42 bi-metal band saw blade.

    5. One set of tools.
