  •  Home-Products-±45°-60° PX-25/46S Miter Band Saw Machine for Metal Cutting

    • ±45°-60° PX-25/46S Miter Band Saw Machine for Metal Cutting

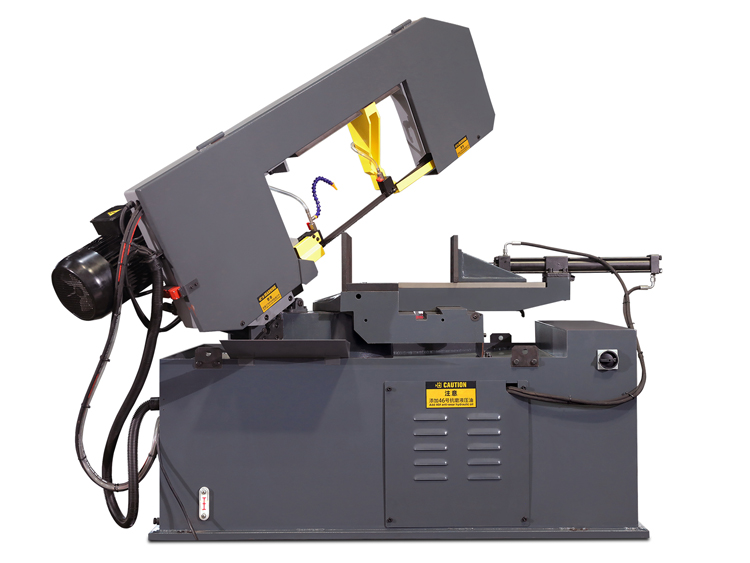

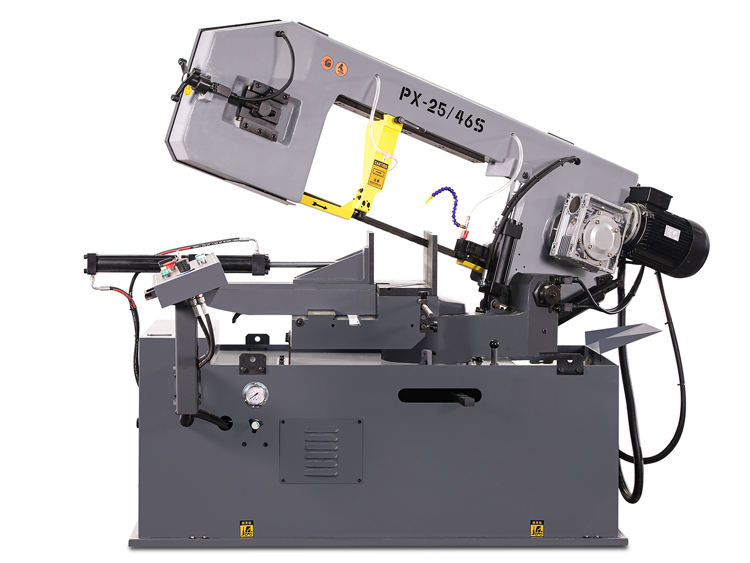

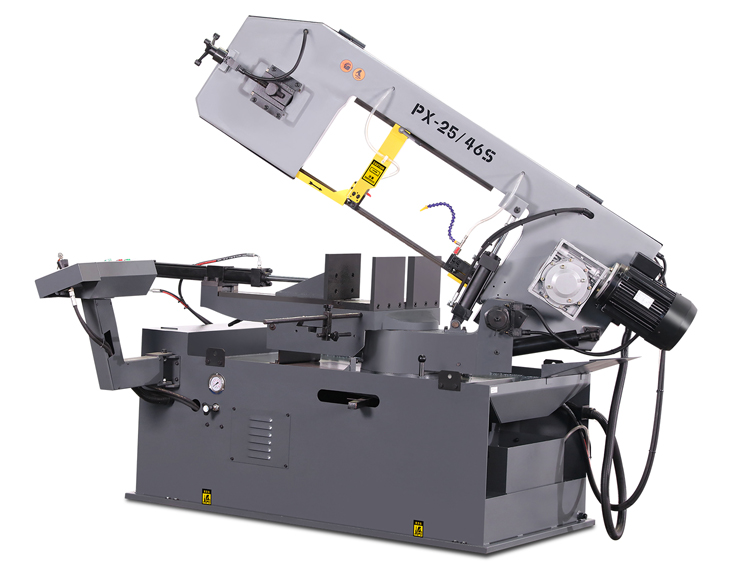

    -45° – 0° – +60° PX-25/46S Miter Band Saw Machine for Metal Cutting
    Cutting Capacity   (0°): ● 330 mm ■ 450×250 mm
    Cutting Capacity (45°): ● 300 mm ■ 300×250 mm
    Cutting Capacity (60°): ● 200 mm ■ 200×250 mm
    Saw Blade Size: 3960x27×0.9 mm

    Features:

    1. Max. cutting 330mm at 90°

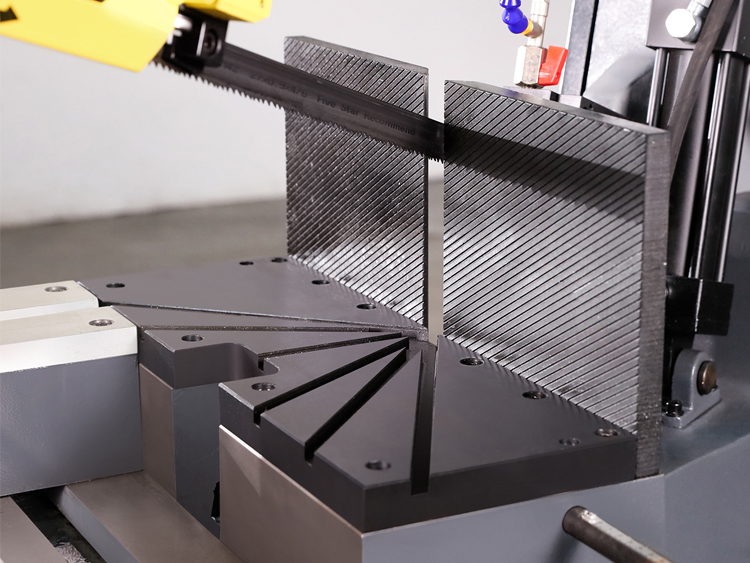

    2. Hydraulic clamping vice to fix the material well

    3. Saw frame swivel on both side to get angle cutting

    4. Quick lock of the saw frame swivel

    5. Hydraulic descent of the saw frame

    6. Gear drive, double speed motor

    Specifications:

    Model PX-25/46S
    Cutting Capacity     0° ● 330mm ■ 450x250mm
    ±45° ● 300mm ■ 300x250mm
    +60° ● 200mm ■ 200x250mm
    Blade Speed 45/94 m/min
    Blade Size (L x W x T) 3960x27x0.9 mm
    Blade Motor 1.5/2.2 kw

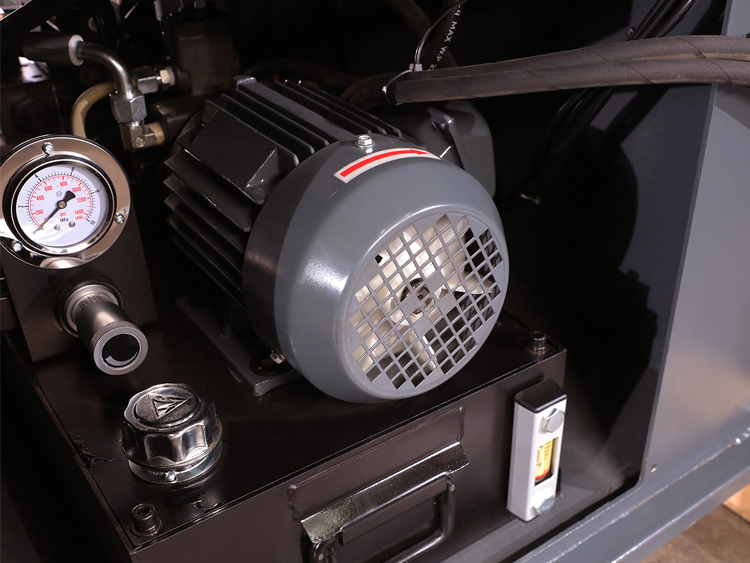

    Hydraulic Pump 0.75 kw
    Coolant Pump 0.045 kw

    Drive

    		 Gear
    Vise Clamping Manual
    Material Feeding Manual

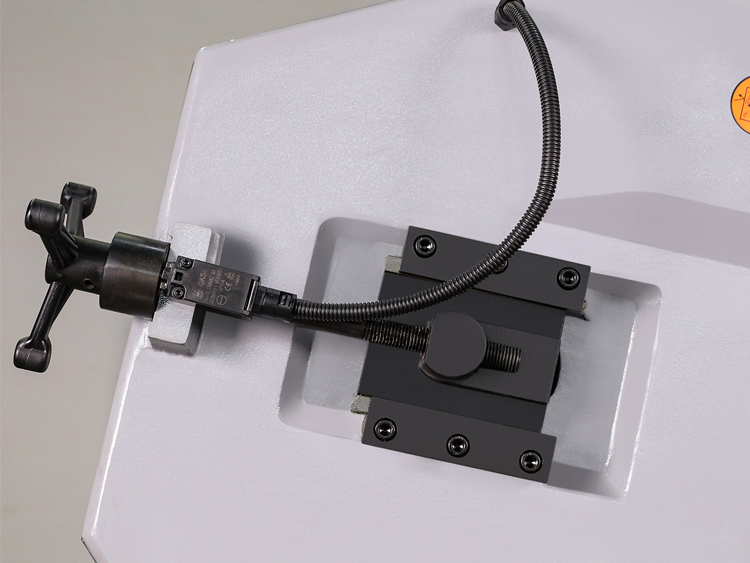

    Blade Tension Manual
    Angle Swivel Manual
    Angle Display Angle Scale
    Machine Dimension 2200x1100x1500 mm
    Machine Weight 857.5kg

    * We reserve the rights to modify above specification without notice.

    1. One direction angle swivel -45° ~ 0°～+60° .

    2. Blade cleaning brush.

    3. One roller table.

    4. One piece of M42 bi-metal band saw blade.

    5. One set of tools.
