  •  Home-Products-PX-17/31S Miter Band Saw Machine for Metal Cutting

    • PX-17/31S Miter Band Saw Machine for Metal Cutting

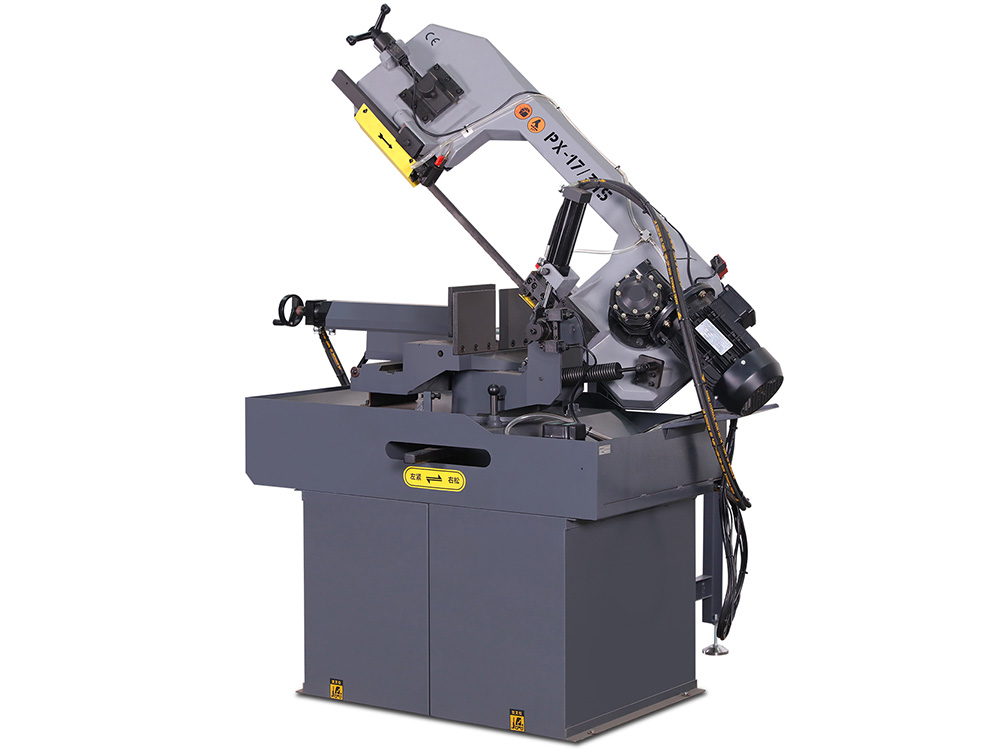

    PX-17/31S Miter Band Saw Machine for Metal Cutting
    Cutting Capacity   (0°): ● 230 mm ■ 315×170 mm
    Cutting Capacity (+45°): ● 200 mm ■ 210×170 mm
    Cutting Capacity (-60°): ● 130 mm ■ 130x130mm
    Saw Blade Size: 2825x27×0.9 mm

    Model

    PX-17/31S
    Cutting Capacity 0° ● 230mm ■ 315×170 mm
     +45° ● 200mm ■ 210×170 mm
    -60° ● 130mm ■ 130x130mm
    Blade Speed 37/73 m/min
    Blade Size (L x W x T) 2825x27x0.9 mm
    Blade Motor 0.75/1.1 kw
    Coolant Pump 0.045 kw
    Vise Clamping Manual
    Material Feeding Manual
    Blade Tension Manual

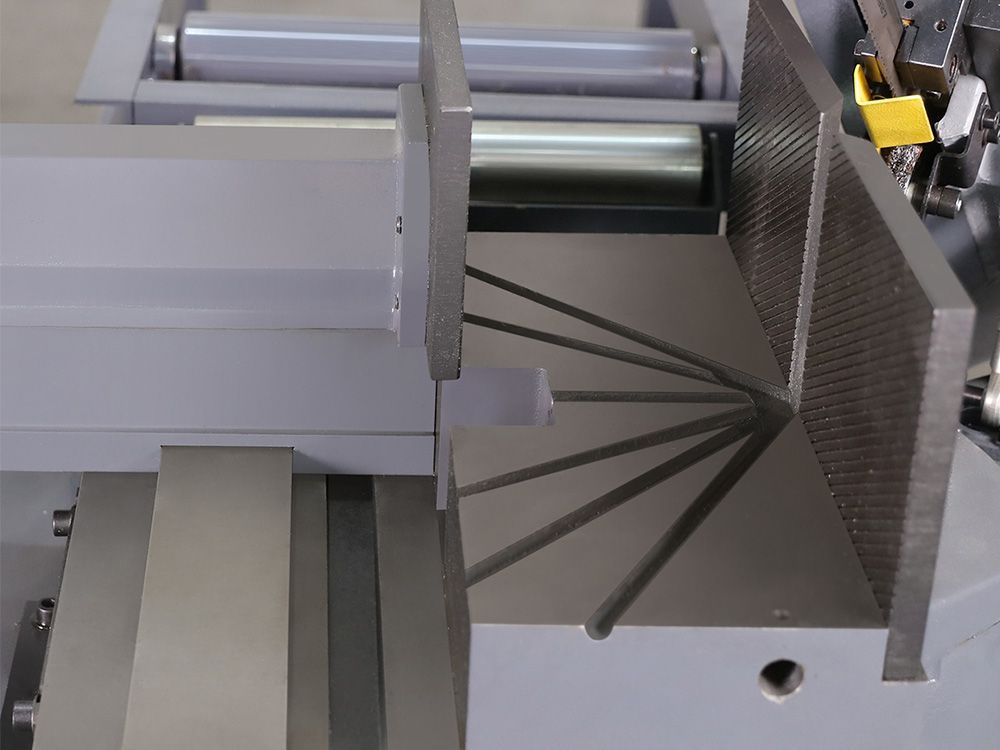

    Angle Swivel Manual
    Angle Display Angle Scale
    Machine Dimension 1650x700x1930 mm
    Machine Weight 424kg

    * We reserve the rights to modify above specification without notice.

    1. One direction angle swivel -45° ~ 0°～+60° .

    2. Blade cleaning brush.

    3. One roller table.

    4. One piece of M42 bi-metal band saw blade.

    5. One set of tools.
