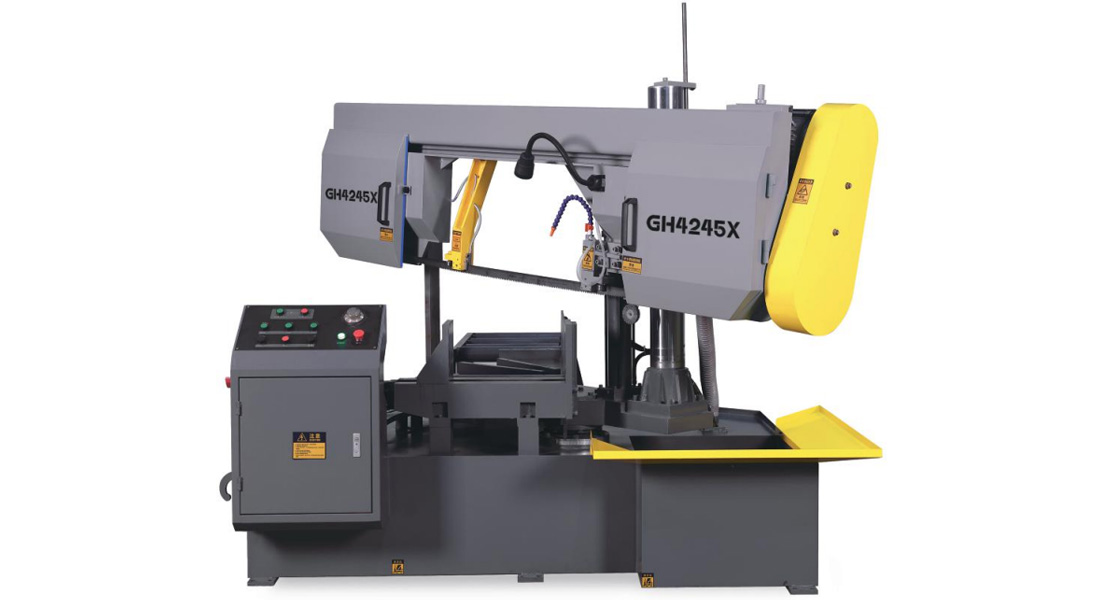

    • GH4245X Semi Automatic Mitre Cutting Band Saw

    GH4245X Semi Automatic Mitre Cutting Band Saw
    Cutting Capacity   (0°): ● 450 mm ■ 500×450 mm
    Cutting Capacity (45°): ● 450 mm ■ 480×450 mm
    Cutting Capacity (60°): ● 350 mm ■ 350×350 mm
    Saw Blade Size: 5850x41x1.3 mm

    Model GH4245X
    Cutting Capacity     0° ● 450mm ■ 500x450mm,
    +45° ● 450mm ■ 450x450mm
    +60° ● 350mm ■ 350x350mm
    Blade Speed 23/43/62/70 m/min
    Blade Size (L x W x T) 5850x34x1.1 mm
    Blade Motor 4.0 kw (4P)
    Hydraulic Pump 0.75 kw
    Coolant Pump 0.09 kw
    Vise Clamping Hydraulic
    Material Feeding Manual
    Blade Tension Manual
    Angle Swivel Manual
    Angle Display Angle Scale
    Machine Dimension 2860x1970x2030 mm
    Machine Weight 2240kg

    * We reserve the rights to modify above specification without notice.

    1. One direction angle swivel 0°～+45° .

    2. Blade cleaning brush.

    3. Working light.

    5. One roller table.

    6. One piece of M42 bi-metal band saw blade.

    7. One set of tools.

    1. One direction angle swivel 0°～60° .

    2. Inverter drive saw blade speed.

    3. Hydraulic blade tensioning
