  • G4265ZA Heavy Duty Miter Cutting Bandsaw Machine

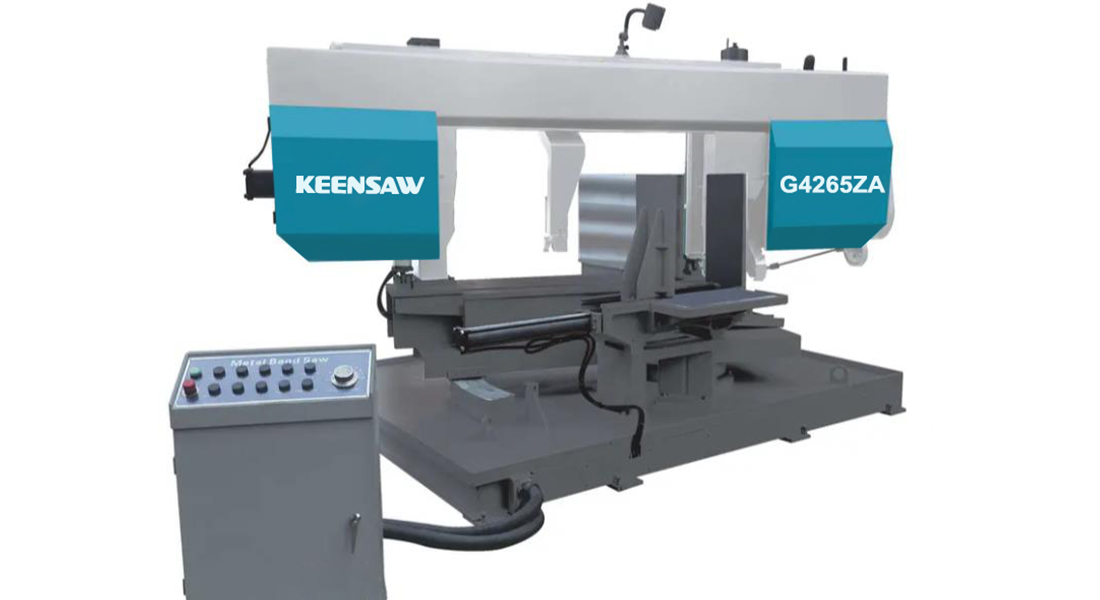

    G4265ZA Heavy Duty Miter Cutting Band Saw Machine
    Cutting Capacity   (): 650 mm 700×650 mm
    Cutting Capacity (45°): 550 mm 550×650 mm
    Cutting Capacity (60°): 250 mm 250×650 mm
    Saw Blade Size: 7400x54×1.6 mm

    Model G4265ZA
    Cutting Capacity     0° ● 650mm ■ 700x650mm
    +45° ● 550mm ■ 550x650mm
    +60° ● 250mm ■ 250x650mm
    Blade Speed 30/50/70 m/min
    Blade Size (L x W x T) 7400x54x1.6 mm
    Blade Motor 5.5 kw (6P)
    Hydraulic Pump 1.5 kw
    Coolant Pump 0.09 kw
    Vise Clamping Hydraulic
    Material Feeding Manual
    Blade Tension Hydraulic
    Angle Swivel Manual
    Angle Display Angle Scale
    Machine Dimension 3680x2100x2100 mm
    Machine Weight 5400kg

    * We reserve the rights to modify above specification without notice.

    1. One direction angle swivel 0°~+60° .

    2. Blade cleaning brush.

    3. Working light.

    5. One roller table.

    6. One piece of M42 bi-metal band saw blade.

    7. One set of tools.

    1. Inverter drive saw blade speed.

    2. Hydraulic blade tensioning

    3. Electric roller table
